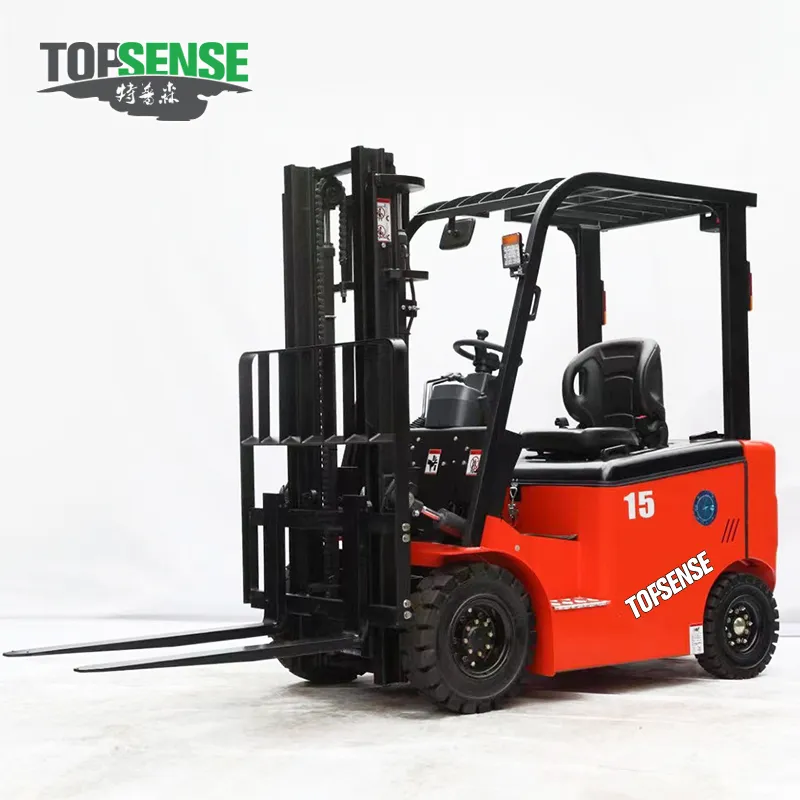

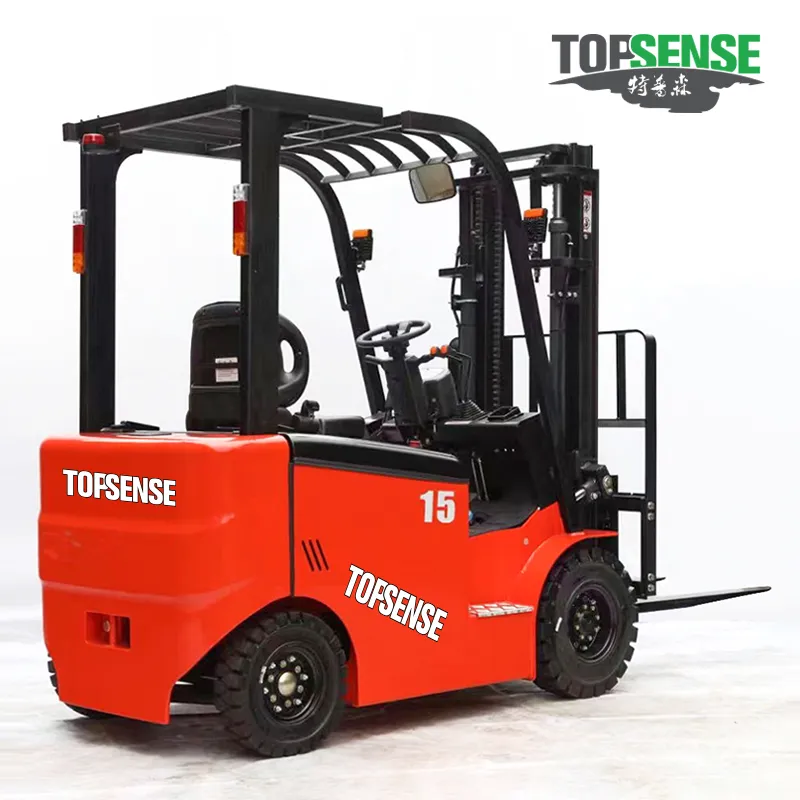

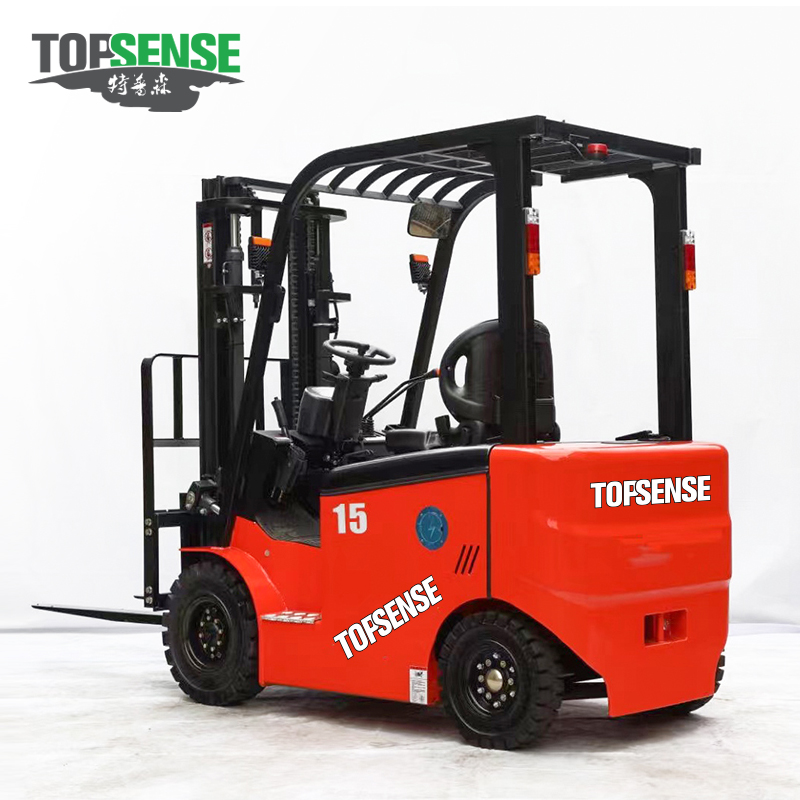

CPD15

Brand: Topsense

Product Code: CPD15

Horsepower: Battery

Rateloaded: 1500

L*W*H: 2170*1085*2000

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

SHEET

overall weight(kg) 2500

rated load(kg) 1500

load center(mm) 500

lifting height(mm) 3030

free lifting height(mm) 100

mast tilt angle front/rear 6/10

min turning radius(mm) 2100

min ground clearance(mm) 105

overhead guard height(mm) 2060

front overhang(mm) 400

overall length(mm) 2170

overall width(mm) 1090

overall height(mm) 2000

max working height(mm) 4100

wheel base(mm) 950

including fork 3245

gradability 15

max loaded towing capacity(kg) 10

lifting speed full load(mm/s) 300

descent speed full load(mm/s) 410

descent speed unload(mm/s) 350

max travel speed(km/h) 10

power type Battery

drive motor power(w) 5.5

lifting motor power(kw) 5.5

battery capacity(ah) 48V/230Ah
